This post is part of a five-part series on the adverse consequences of imposing industrial-scale wind plants on electricity systems. The series shows that there is no valid reason to pursue the policy of implementing new renewable energy sources in electricity generation, especially wind.
This post provides more information on the subsidies and emissions considerations for the scenarios summarized in Part I. Parts II and III dealt with cost implications. Part V this Thursday will focus on a number of other issues providing a complete picture of wind’s undesirability and unfeasibility in all respects.
Part I also provides links to the rest of the series.
Because subsidy issues are often raised, comparing those for wind and other generation plants, it is appropriate to show their effect on a MWh basis, regardless of the absolute amounts. The subsidy related to producing a useful output is the important consideration, because this is how electricity is generated, used and paid for. Table IV-1 shows this, but at the level that the wind plant owner experiences, not the full costs of wind to society, that is including wind balancing plant and unique-to-wind grid investments. Note the very high wind subsidies, especially relative to this limited view of costs.
Table IV-1 – Levelized Costs (For the New Plants Being Assessed) and Subsidies ($/MWh)
Source for subsidies: “Hard Facts: An Energy Primer”
This invalid, superficial view of wind subsidies appears to put wind at the same “cost” as the coal and natural gas plant types, and notably below nuclear. As described in Part III, comparisons cannot be made without the full wind costs taken into account. Remember this when claims are made about wind being competitive with other generation plant types as above.
High subsidies are claimed as needed because wind is promoted as being a new technology and therefore as needing support to encourage improvement, as other electricity generation technologies have enjoyed. First, wind is an old technology that has been in use for hundreds of years, and current wind turbines are basically little more than “modernized” versions. There is not much that can be improved upon to improve the conversion capability from wind to electrical energy, especially at the industrial-scale level of grid-feeding wind plants. Because wind turbines are very mechanically oriented, about the only approach available is to keep increasing the size of the already massive wind turbines being implemented today. However, this is a marginal and not desirable consideration considering the structural aspects and hardly justifies subsidization.
Finally the subsidization argument is sometimes supported by the very large energy resource potential represented by wind, which it is. The two most important arguments against this reasoning are (1) the highly diffused nature of the energy source that makes it useless for today’s developed societies (those wanting more information on this important aspect can look to these sources here, here and here), combined with (2) the reality that the conversion technology has reached its worthwhile limits. As an example, solar is a different consideration, because of the possibility of improved conversion technologies and in a truly distributed generation environment, but this is beyond what should be focused on for commercialization for decades.
This raises the contentious question of the level of emissions savings provided by wind plants, which has never been conclusively determined, taking into account all the factors. Further, there is no published accurate, minute-by-minute, actual emissions by individual plant. Generally speaking, currently reported emissions information is just an estimate based on calculations using assumptions and simple algorithms. In some cases actual measurements are taken but are no better than those calculated as reported by the International Energy Agency (see page 35). A report by The Sustainable Energy Authority in Ireland, “Renewable Energy in Ireland”, in Appendix 1 also refreshingly recognizes the limitations to existing reporting methods.
There is an inescapable consequence to introducing wind’s production persistently erratic (over shorter periods) and unreliable (over longer periods) into electricity systems. Other generation plants must react to wind’s random minute-to-minute fluctuations as well as longer term absences and appearances. In effect, wind is another form of load on the electricity system that must be responded to in addition to the “normal” changes in demand. This forces other generation plants to operate less efficiently than they would in “normal” operations providing the steady, reliable electricity supply that modern societies require.
The result of the combination of these two sources (demand and wind) in the short term is a fairly random set of fluctuations with a variability of greater range than each individually, and this increases with wind penetration. Please, no further comments from the supposed “Statistics Professor” that the combination of two such random events in real time is the square root of the sum of the squares of the two inputs.
In other words, wind imposes a significantly greater need for frequency regulation control. Although not much reported on, frequency regulation generation plants appear to consume more fuel and produce more emissions dealing with this than they would if the normal short term variations in demand did not exist, even if the actual “average” amount of electricity produced is less during frequency regulation operation versus normal, steady operating conditions.
It appears that an international energy consulting firm, KEMA, has reported on this, as indicated by this study from the Netherlands, home of KEMA. This reference is also cited in another KEMA study (page 4 and note 1.). These claim that short term cycling coal and gas plants increases the fuel consumption (and hence emissions) over the normal operation of these plants even though they are producing less electricity during the cycling process. I unsuccessfully attempted to obtain a copy of this twice cited study from KEMA on two continents.
Here is a simple analogy. Imagine driving a car on a major highway at a normal (and fuel efficient) speed of say 55 mph. This corresponds to the normal operating conditions for fossil fuel plants, but ignoring normal short term demand fluctuations. Now imagine the same circumstances but introduce the repeated, and in short succession, applying of the brakes to reduce speed quickly to say 45 mph, and then pressing on the gas to accelerate back to 55 mph, or all sorts of combinations and ranges of this. This corresponds to the impact of wind fluctuations over and above normal demand fluctuations. Now imagine that the rate of change of the application of brakes and accelerator are amplified by this raised to the power of three. This is because with a wind turbine a doubling of wind speed increases electricity output by a factor of 8, and reducing wind speed by half reduces electricity output by factor of one-eighth. What do you think will be the effect on the fuel consumption, emissions and wear and tear on the engine, transmission and other moving parts of the car?
Now step out of this analogy and re-enter from a different point of view. The car in this thought experiment is now the wind production, not the wind balancing plants responding to it. Consider the effect on the other “normal” traffic around you. This represents a higher level view of the impact of introducing wind plants into an electricity system.
On the subject of plant start up and shut down to accommodate longer periods of wind variability, it appears that newer plants are more efficient in doing so. This should not be a distraction from the realities of the frequency of this need over time and the necessity of some existing plants being forced into doing this with the introduction of wind. Claims that future improvements in wind forecasting might provide some help here, but this should be relatively marginal. To put this in perspective, think in terms of weather forecasting in general.
As all the analyses of wind emissions effects that I have reviewed are incomplete, this prompted me to develop and continue to refine a calculator for fossil fuel and emissions savings for wind plants. The calculator’s purpose is to provide a framework for the range of considerations required and, using fairly straight forward calculations, show the impact of wind. I produced a range of results depending on different input assumptions. The assumptions are necessitated by the lack of adequate data as described above. I believe that the most adverse for wind will be borne out when finally admitted to by those know and cannot or will not speak out (for a variety of reasons), and those who do not know and possibly do not wish to.
I could provide extensive references on all sides of this issue, but this would not resolve it today. This in itself should give readers pause for concern on this important subject.
Considering all this, my inescapable position is that wind plant presence in an electricity system does not contribute to fuel or emissions savings, and may actually increase these.
Cost of Emissions Savings
An important consideration in comparing the scenarios is their relative ability to reduce emissions, as well as the associated fossil fuel consumption, and the related costs in doing so. As for the above analyses this also takes the approach of looking at this on the basis of the year 12 new plant information and extending this over 40 years. As we have seen this amounts to 19.2 TWh of electricity production, except for some wind scenarios/options. As previously shown, there are options at the 15 year point for wind, as follows:
In all cases the same levelized cost rates for wind will apply, assuming constant costs for wind plant installation and all costs for each scenario. Anyone wanting a more precise result, assuming some costs will increase and others decrease, can do so with more extensive analysis than provided here. Again, such added precision would not likely materially change the results. For example higher gas prices will affect all three of the gas and wind scenarios.
In the non-wind scenarios, the total costs can be determined by multiplying 19.2 TWh x 106 (to convert to MWh) by the levelized cost per MWh. The wind scenario cost are as determined in Part III, This cost can then be divided by the CO2 emissions saved by each scenario.
As already explained in Part I, I am working on the basis that it is better to be approximately right rather than wrong with considerable precision.
Table IV-2 provides the results for the scenarios, assuming coal plants are replaced in all scenarios. Emissions savings are less if other plant types are replaced, for example hydro and nuclear. See this post on the problems of cycling nuclear plants. In the two wind scenarios a range of CO2 emissions savings rates from 0.1 tonnes/MWh (to save dividing by 0 and getting an answer of infinity for the cost of savings per MWh), and a generous 0.3 tonnes/MWh. If this seems unreasonably punitive to wind, review the section on “Emissions” above.
First some sample calculations. The basis for emissions saving is taken to be coal plants that produce CO2 emissions at the rate of 1.1 tonnes of per MWh. For an emissions rate for gas plants at 0.5 tonnes/MWh, the rate of emissions savings is 1.1 – 0.5 = 0.6 tonnes/MWh. So for the gas plant scenario the emissions savings over 40 years are:
Gas plant emissions savings = 0.6 (tonnes/MWh) x 19.2 (TWh) x 106 (converting to MWh) = 11,500,000 tons or 11.5 million tonnes
In the wind/natural gas scenario, assuming the wind plants are replaced, at a wind plant emissions savings rate of 0.1 tonne/MWh the emissions savings are:
Wind savings = 0.1 x 5.7 (TWh) x 106 (converting to MWh) = 570,000 tons or 0.6 million tonnes
Table IV-2 – CO2 Emissions Savings and Associated Costs Relative to Existing Coal Plants
By these measures wind is more expensive by thousands of dollars per tonne of CO2 saved than nuclear or natural gas. The more realistic wind scenarios/options are the “No Replacement” ones, because support for wind cannot persist as reality sinks in.
Note that any contemplated imposition of a carbon tax on fossil fuel plants would not put wind plants at the same cost of emissions savings as nuclear and gas, unless such a tax was thousands of dollars per tonne. As far as nuclear is concerned, wind proponents might try to justify additional costs as well. Remember I used significantly higher implementation costs than the DOE/EIA to provide for such eventualities. In addition such tax on wind balancing plants should be charged to wind, so this becomes a bit of a “merry-go-round”.
In this analysis all plants are given the benefit of their TWh produced even though this includes the energy invested component. Looking at this from the point of view of plant production after deduction of the electrical energy component of EIe would widen the gap between the two wind and the other scenarios.
Implications for the U.S.
Remember the above information is on the basis of 1 TWh in year 0. Table IV-3 translates this information to the US case based on 2010 electricity production of 4,000 TWh. In the same year the US 2010 CO2 emissions due to electricity production was 2,389 mtonnes.

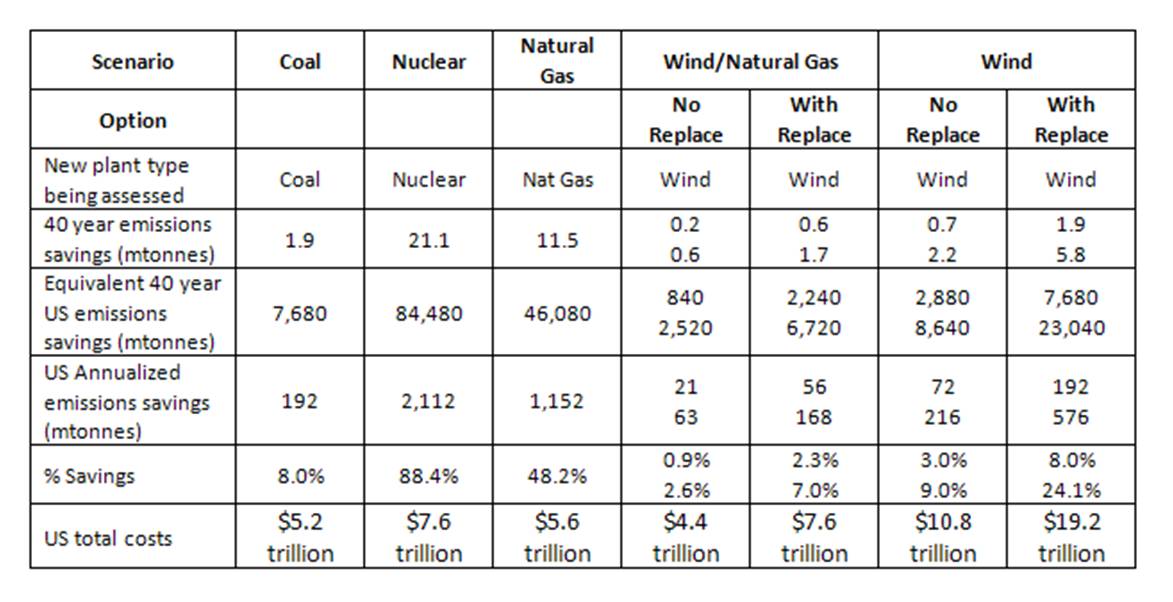

Table IV-3 – Implications for the US
The most likely outcome of pursuing wind as a CO2 emissions reduction strategy is the Wind/Natural Gas scenario with the No Replacement option, as it should demonstrated within this 15 year time frame that wind is not a feasible policy. The sooner the better.
For comparison purposes the Wind/Natural Gas and Replacement Option is more equitable as this is the realistic limit of wind penetration, and all plants being assessed are producing over the period of 40 years. At best, the wind savings are most likely in the range of few percent over the life of the wind plants at a cost of $7.6 trillion, compared to nuclear with 88% emissions savings at the same cost and natural gas at 48% savings for $5.6 trillion.
Part V will provide a brief review some of the many other undesirable aspects of wind plants, all of which are needless and unavoidable if the fundamental feasibility case (technical, financial and operational) for wind is properly evaluated, and, of course, some concluding remarks. In summary, we must stop the folly of supporting the implementation of wind plants, and like industrial-scale, low quality, grid-feeding electrical energy sources.
As first introduced, which admittedly contains some “glitches” https://www.masterresource.org/2009/11/wind-integration-incremental-emissions-from-back-up-generation-cycling-part-i-a-framework-and-calculator/
Further updates (including a link to access the latest version) and analyses were provided in a two part series starting here.
 DOE/EIA (2010). “Electric Power Annual 2010 Data Tables” http://www.eia.gov/electricity/annual/html/table3.9.cfm
